Sirio High Power 4000 PL 10m & CB Mobile Antenna

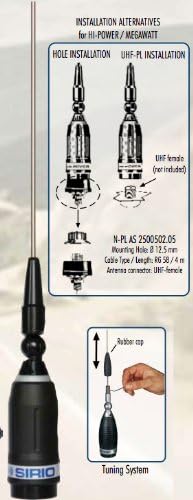

Vehicular antenna conceived to bear high powers. The coil is made of big section copper wire and the whip of conic 17/7PH stainless steel to get the best performance. The mount is of black chromed brass with a rubber washer for a perfect watertightness and its UHF-PL259 connection makes it suitable for the installation on magnetic mount. It can be supplied with "N-PL" mount and 4m cable for a hole installation on the vehicle.

• CB & 10m Mobile antennas High power handling capability Tunable from 27 to 28.5 MHz Protection from static discharges DC-Ground 17/7 PH tapered stainless steel whip Supplied with special screw and anti-theft safety key 180° inclination and adjustable whip, detachable for car-wash Suitable for magnetic mount
• Type: base loaded Frequency range: 27 ... 28.5 MHz Impedance: 50 Ohms, Polarization: linear vertical SWR @ res. freq.: <= 1.2 Bandwidth @ SWR <= 2: >= 2000 KHz (200 channel) Max. power: 1500 Watts (CW) continuous 5000 Watts (CW) short time
• Polarization: linear vertical Bandwidth @ SWR <= 2: HI-POWER 4000: >= 2580 KHz (230 channel)
• SWR @ res. freq.: <= 1.2 Max. power: HI-POWER 4000: 600 Watts (CW) continuous, 1800 Watts (CW) short time
• Mounting: HI-POWER Series PL: UHF-male (PL 259)
