IP67 Waterproof Universal 10-30VDC Safety Retro-Reflective Photoelectric Beam Sensor for 12VDC and 24VDC Gate Opener, Garage Door Sensor Up to 40 Feet Sensing Range, Pre-Wired 6.6 Feet Cord

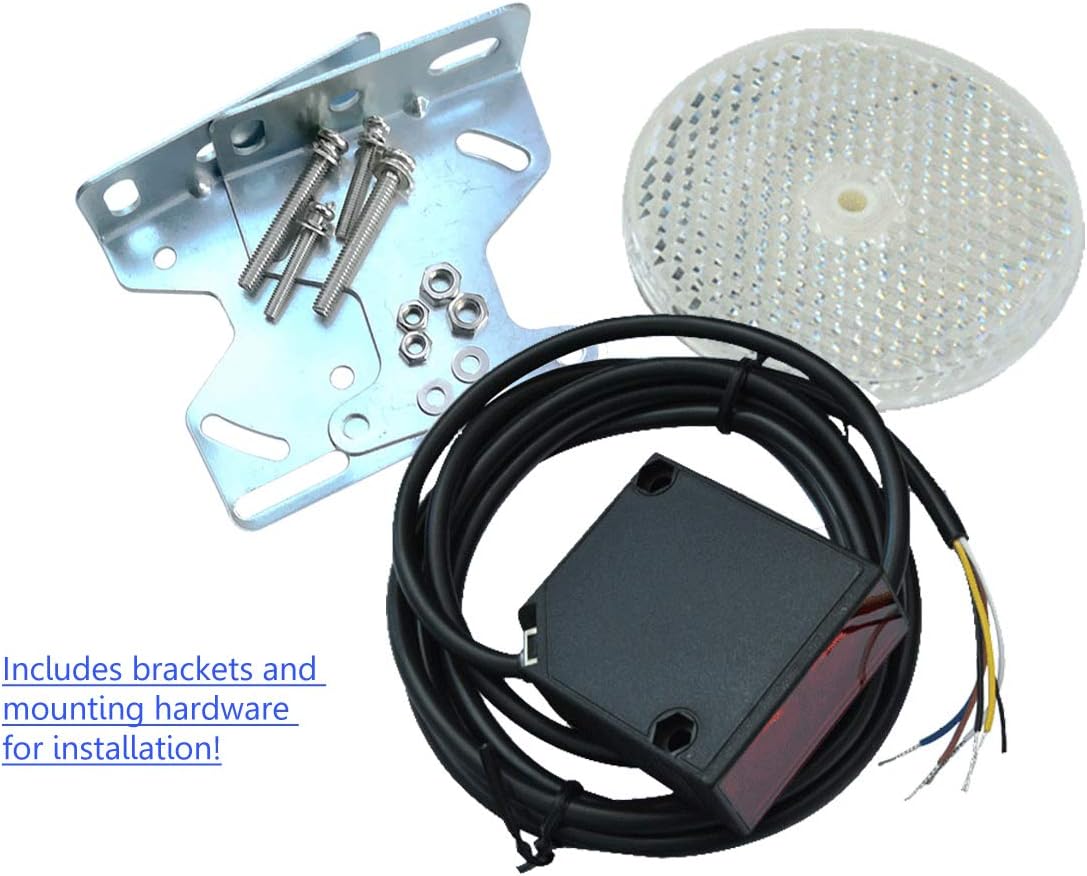

1.Product Description: The Supreform retro-reflective photoelectric beam sensor is an ideal accessory for your existing gate opener and garage door opener. It’s compatible with most brands gate opener, garage door opener and other security systems with both normal open and normal closed dry contact output. The kit includes an optional 10K resistor for the gate opener which monitors presence and operation of a photoelectric sensor. The kit includes the brackets and mounting hardware for installation. The big size of lens makes it’s easy to align the sensor with the reflector when installing. More Sensitive! Strong Anti-interference Ability! The sensor is pre-wired 6.6ft (2m) cord for easy wire connection. It’s designed for outdoor use with extra high protection degree IP67. It can be powered by wide range input voltage 10-30VDC. We guarantee to answer all your questions within 24 hours. 2.Technical specifications: Detection Method: Retro-Reflective Angle: 1.5o approx. Max. Sensing Range: 40 Feet (12 m) Supply Voltage: 10-30VDC CurrentDraw:Standby 30mA; Active 70mA Output: Relay SPDT Output Capacity: 1A/30VDC, 1A/250VAC Protection Degree: IP67 LEDs - Green: Power on LEDs - Red: Alignment Ambient Temperature: -4-131 °F(-20-55 ℃) 3.Contents: 1 x Retro-reflective Photoelectric Beam Sensor; 2 x 10K resistor; 1 x User Manual; 1 Set of Installation Accessories.

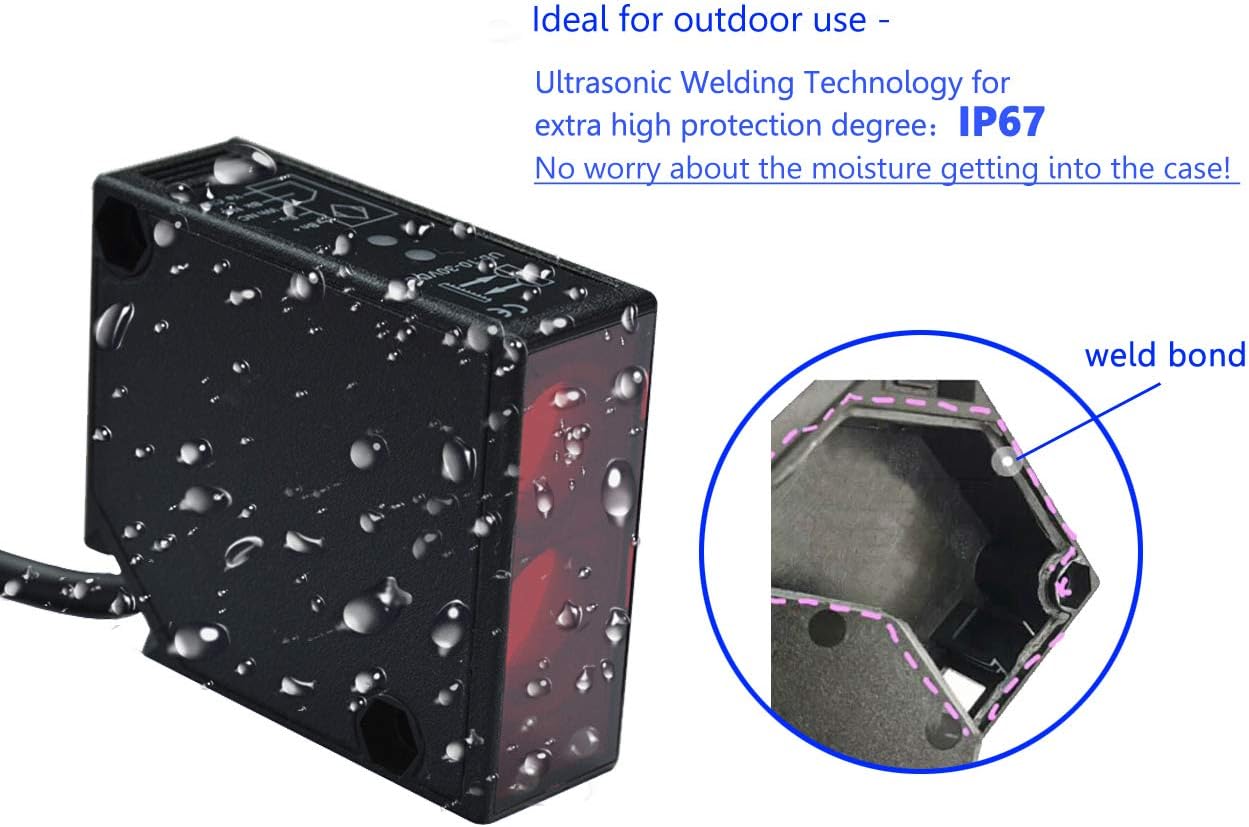

• IDEAL FOR OUTDOOR USE – Ultrasonic Welding Technology for extra high protection degree IP67. No worry about the moisture getting into the case!
• UNIVERSAL –Compatible with most brands of gate opener and garage door opener either photoelectric sensor is monitored or non-monitored.
• BIG SIZE OF LENS for easy alignment when installing. More Sensitive! Strong Anti-interference Ability! Pre-wired 6.6ft (2m) cord for easy wire connection.
• LONG SENSING RANGE - Up to 40 feet (12m).
• WIDE RANGE INPUT (10-30VDC) for easy power solution.
