ICL8038 Function Signal Generator DIY Kit 5Hz-400kHz Sine Triangle Square Wave Adjustable Frequency Amplitude Low Distortion XR2206 Upgrade Board
4.7 (110 items)
Limited Time SaleUS$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211160612 | Release Date | 2026/04/04 | List Price | US$36.00 | Model Number | 211160612 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

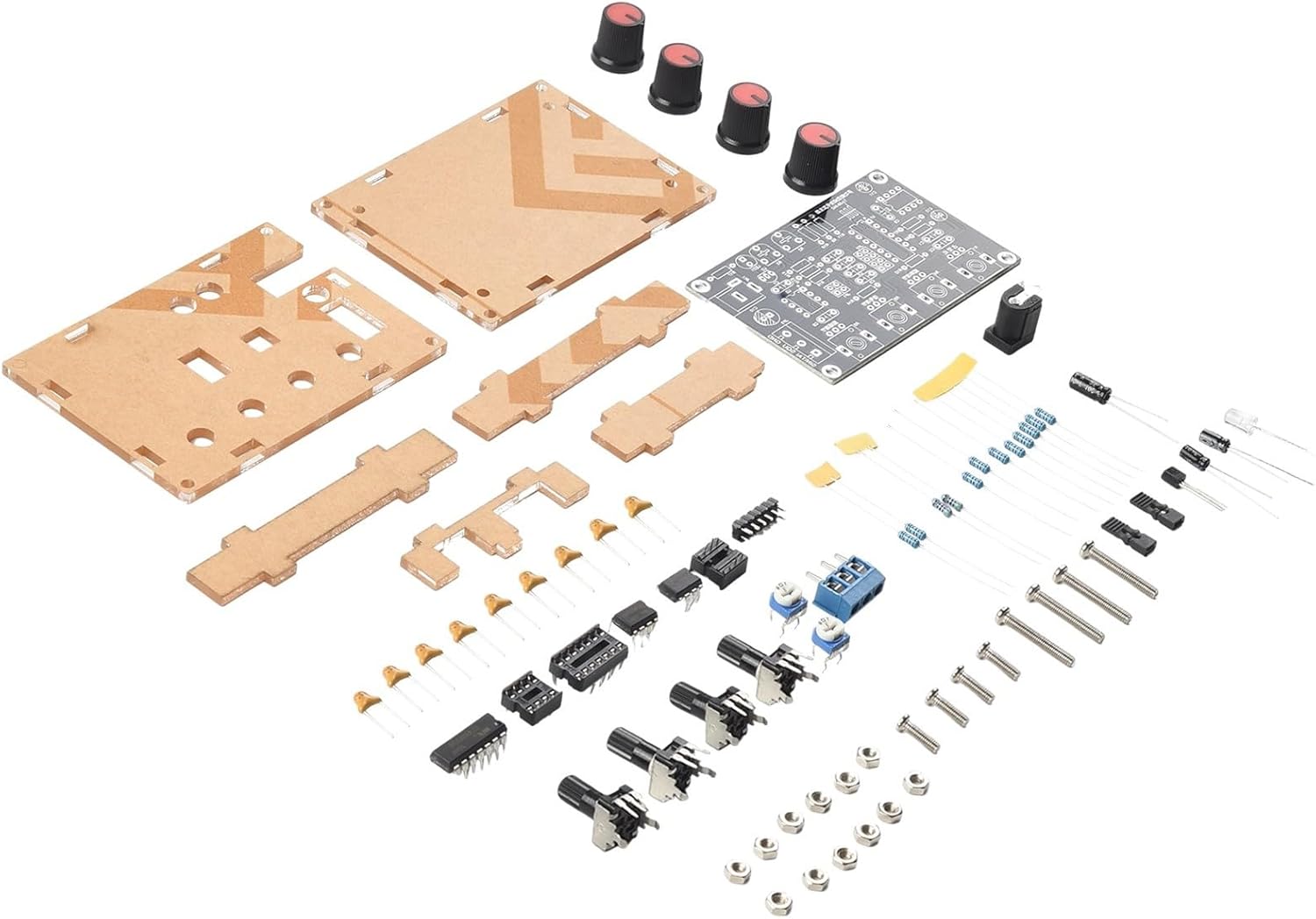

Product description DescriptionThis signal generator DIY kit is professional product to generate sine/triangle/square/forward and reverse sawtooth wave. It's a DIY kit for you to weld and install.Features:*Uses ICL8038 and high-speed op amp, higher accuracy.*Can output sine/triangle/square/forward and reverse sawtooth waveforms.*Frequency Range: 5Hz~400kHz; Duty Cycle Range: 2~95%(Adjustable)*Supports dual power amplifiers without blocking the capacitor to for ensure high and low frequency signal distortion.*Adjustable frequency and amplitude.*Frequency adjustment features coarse tuning and fine tuning.*All are through hole components, easy to install.Specifications:Material: FR4 + AcrylicSupply Voltage: 12V~15VFrequency Range: 5Hz~400KHz(Adjustable)Duty Cycle Range: 2~95%(Adjustable)Low Distortion Sine Wave: %Low Temperature Drift: 50ppm / °COutput Triangular Wave Linearity: 0.%DC Bias Range: -7.5V~7.5VOutput Amplitude Range: 0.1V~11VPP(operating voltage 12V)Board Size: Approx. 7.8 * 5cm / 3.07 * .97inFinished Product Size: Approx. 8.7 * 6 * .7cm / 3.43 * 2.36 * 0.67inProduct Weight: 81g / 2.86ozPackage Size: Approx. 11 * 7 * 3cm / 4.33 * 2.76 * .18inPackage Weight: 95g / 3.35oz Manufacturer Contact Information no
- 【Multifunctional Signal Generator Kit】
- 【High Accuracy】
- 【Wide Frequency Range】
- 【Low Distortion】
- 【】
| Item Weight | 3.35 ounces |
|---|---|
| Manufacturer | Vasiumic |
| Item model number | 2IK6DDM1E5H782YGD9B4I3E738I21 |
| Product Dimensions | 3.94 x 2.36 x 0.79 inches |
