FUYU FBL80 High Speed Max 3m/s Belt Drive CNC Linear Guide Slide Rail Linear Motion Actuator Motorized Nema34 Stepper Motor[1000mm Stroke Work Size]

flash sale iconLimited Time Sale
Until the end
10
34
23

US$284.00 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$189.33
quantity

Product details

Management number 211205013 Release Date 2026/04/04 List Price US$189.33 Model Number 211205013
Category

Effective Stroke: 1000mm Total Length: 1272mm Tatal Height: 80mm Slide Width: 80mm Maximum Horizontal Load: 30kg Max Vertical Load: 5kg[with brake] Max Horizontal Speed:300~1700mm/s[max loading] Max Vertical Speed: 300~600mm/s[max loading] Max Speed: 3000mm/s[No loading] Repeat position accurancy: ±0.1mm Driven Type: Belt Drive Stepper Motor Parameter: Phase : 3 phase Motor flange size: 86mm Motor length: 98mm Holding torque: 5 N.m Current: 3.0A Lead wire: 3

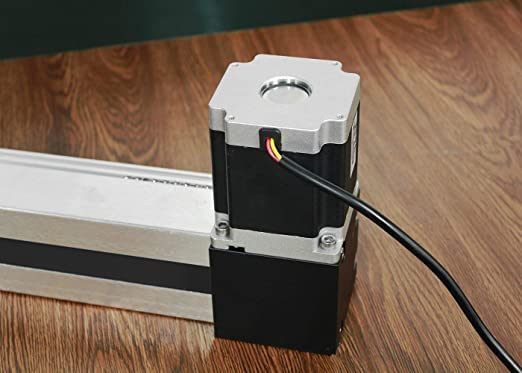

  • Equipped 3 phase flange stepper motor, offer sufficient power, linear module speed can be as fast as 3000mm/s
  • M5 screws on the baseboard and sideway are easy for install and uninstall

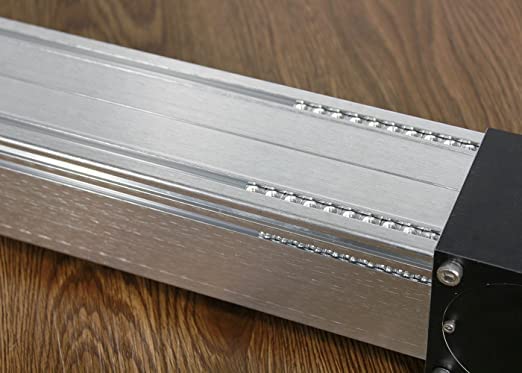

  • Silver polished aluminum for avoid rusting,complete sealed with belt structure make dustproof and IP65 waterproof
  • Aluminum made panel ensured stable performance, travel stroke from 200mm to 3900mm
  • Easy maintenance due to belt driven transmission,vertical loading capacit up to 5kg,horizontal loading capacity can be as heavy as 30kg,
Item Weight 37.4 pounds
Manufacturer FUYU
Package Dimensions 51.97 x 8.27 x 4.72 inches
