Circuit breaker88 Series Push Button Pump Motor Thermal Protector with Circuit Breaker with 12AWG 150mm Wire 1Pcs (Size : 12AWG 150mm, Color : 8A) (Color : 20a, Size : 12AWG 150mm)
5.0 (72 items)
Limited Time SaleUS$19.58 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210099328 | Release Date | 2026/04/02 | List Price | US$13.06 | Model Number | 210099328 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

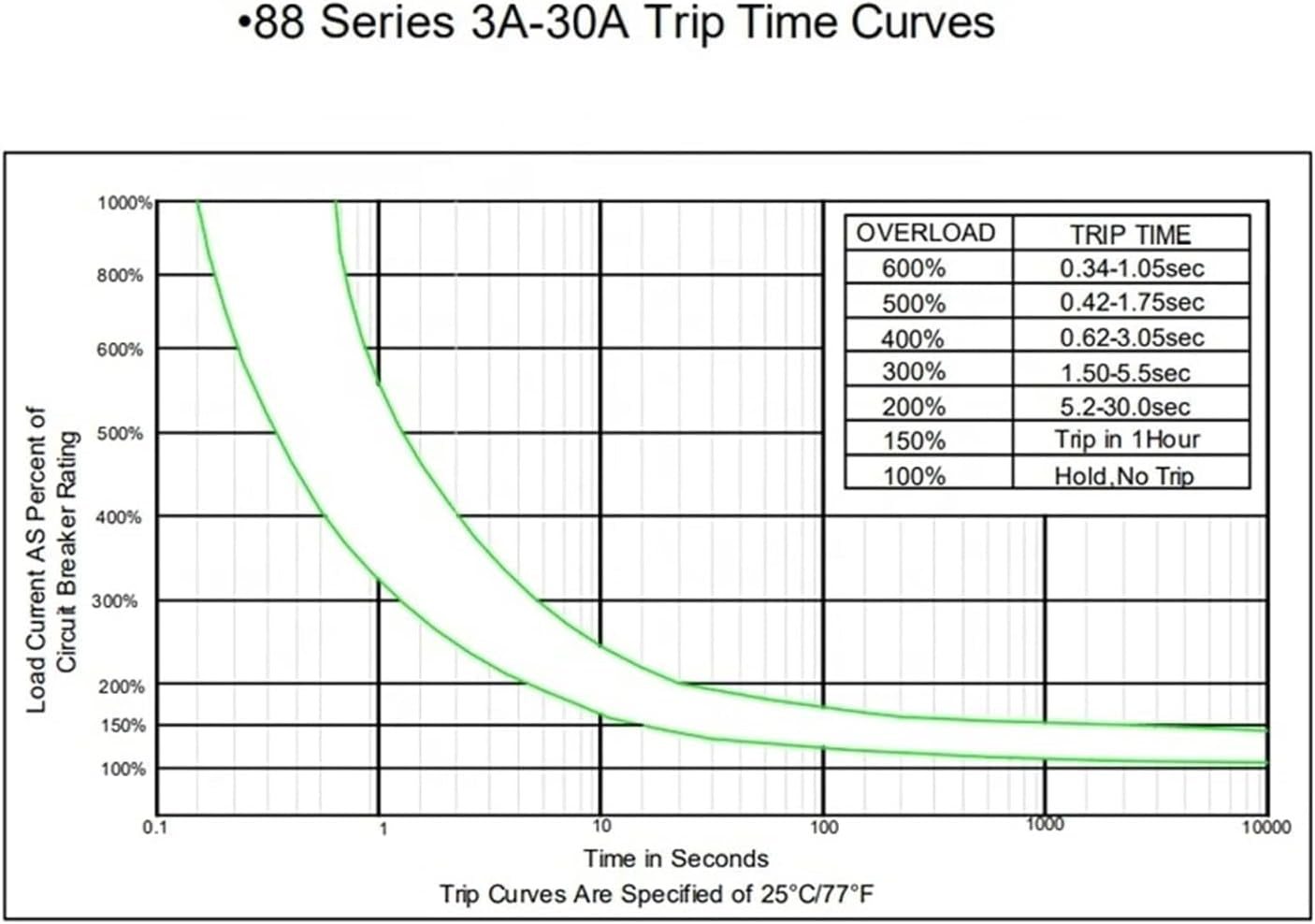

Plug Base Circuit BreakersArc Fault Circuit BreakersProduct Description 88 Series thermal overload protector circuit breaker for pump motor thermal protectorTechnical dataCurrent rating range:3~30AInput voltage rating :125/250VAC; 32/50VDCInterrupting Capacity :125/250VAC x 1,000A(UL 1077)Typical life :1,000 operations at 200% overloadInsulation co-ordination:Rated impulse withstand voltage 2.5kVDielectric Strength:> 1.500VAC/min.Insulation Resistance:>100MOHM (DC 500V)Degree of protection:Terminal area IP00, operating area IP40Mechanical/Environmental DataOperating Ambient Temperature: -10 to +60 Mounting: Various options. See Ordering Information and drawingsTermination: 250''(6.35mm)quick connects or solder terminals Calibration(at25)100% of Rated Current: Hold , No Trip 300% of Rated Current: 1.5-5.0 sec Trip 200% of Rated Current: 5-30 sec Trip 150% ofRated Current: Trip Within 1 Hour Approval
- Plug Base Circuit Breakers
- Arc Fault Circuit Breakers
| Department | Unisex Adult |
|---|---|
| Item Weight | 1.76 ounces |
| Manufacturer | ZCERA |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | ZCERA |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
