20EWRS525E Watt/VAR 2 Element +/-1 mA Output Transducer 1000 Fullscale Calibrating Watts VARS with Calibration Certificate
4.3 (20 items)
Limited Time SaleUS$1,032.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211050246 | Release Date | 2026/04/04 | List Price | US$688.00 | Model Number | 211050246 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The EWRS500 Series combines the features of both a Watt and VAR transducer in a single package. The input voltage and current are shared by the Watt and VAR transducer, with an option of specifying separate, isolated or common ground outputs. The result is a package that replaces both a Watt and VAR transducer in half the space, half the installation cost, and half the power consumption. TransData provides high accuracy, electric utility grade transducers sold at over 2000 utilities worldwide. Contact TransData for a wide variety of additional models with available external power and output options.

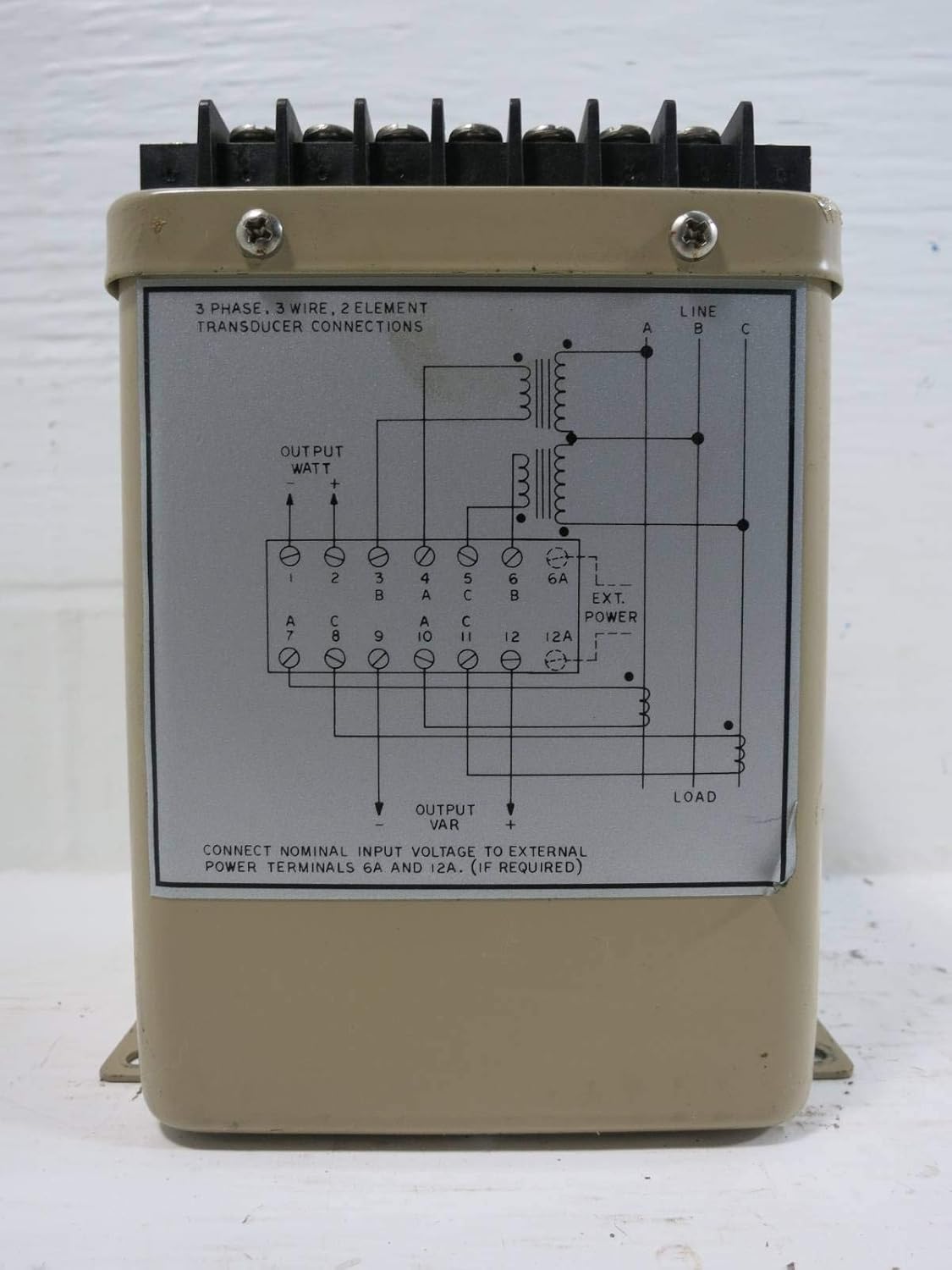

- 2 Element, 3 phase, 3-wire Watts VARS 120vac ext. power Isolated Outputs [(2) 7-Pin Terminals]
- Accuracy 0.25% of rated output
- +/-1mA output is standard, consult factory for all others
- Huge in stock inventory
- 5 year factory warranty
| UPC | 076625958385 |
|---|---|
| Model | 20EWRS525E |
| Brand Name | TransData |
| Item Weight | 3.2 Pounds |
| Part Number | 20EWRS525E |
| Manufacturer | TransData |
| Power Source | Corded Electric |
