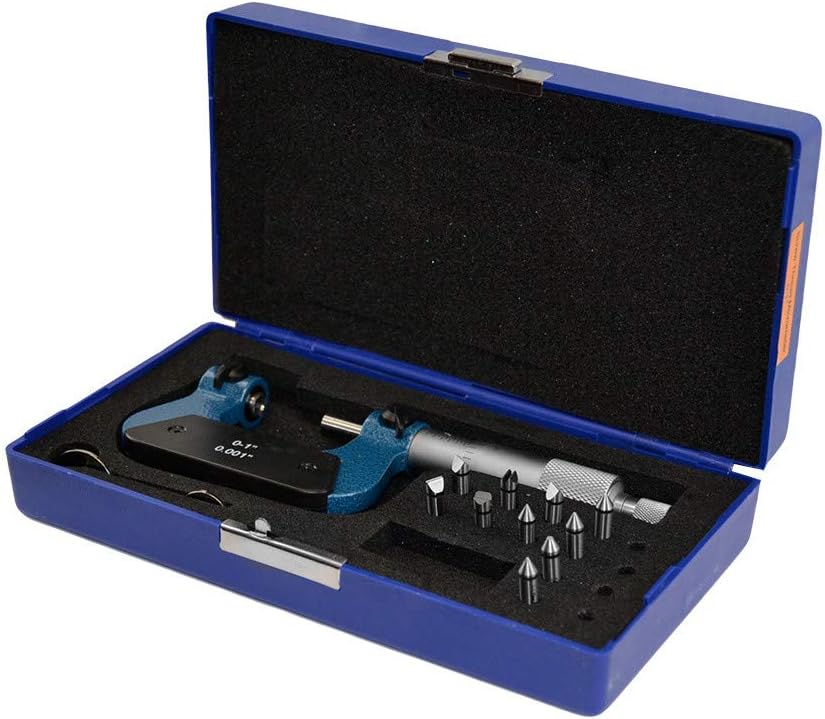

0-1" Range Screw Thread Micrometer Kit with 5 Pairs of Anvil 60 Degree

flash sale iconLimited Time Sale
Until the end
08
54
29

US$41.70 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$27.80
quantity

Product details

Management number 211809016 Release Date 2026/04/04 List Price US$27.80 Model Number 211809016
Category

0-1" Range Screw Thread Micrometer Kit With 5 Pairs Of Anvil 60 DegreeRange: 0 - 1''Pitch: 64 - 5 TPI / 0.4 - 5.0mmGraduations: .001''Accuracy: .00016''/0.004mm5 Pairs Of Anvil # 1-5: Anvil Pair #1: 64-48 TPI (Thread Per Inch) , 0.4 - 0.5mm (Metric)Anvil Pair #2: 44-28 TPI, 0.6 - 0.9mmAnvil Pair #3: 24-14 TPI, 1.0 - 1.75mmAnvil Pair #4: 13-9 TPI, 2.0 - 3.0mmAnvil Pair #5: 8-5 TPI, 3.50 - 5.0mmInterchangeable 60 Degree V-anvil And Conical Spindle Are Made Of A High Grade Steel, Precision Ground And HardenedUse To Measure Pitch Diameter Of Metric And 60 Degree Unified Screw ThreadsForged Steel Frame With Heat Insulated In Baked Enamel Finished To Isolate Heat From Operator's HandAdvanced Spindle Design In Hardened And Precision Ground Lead Screw Threads Give Reliable And Accurate ReadingRotating The Thimble Sleeve When The Inspection Piece Is Between The Spindle And Anvil Activate The Ratchet Mechanism To Tap The Spindle And Apply Uniform Measuring Force To The Inspection Piece. Also Easier To Use In One-Hand Operation And Improves Measurement Repeatability Than Ratchet-Stop Style MicrometerCase Dim L x W x H (in): 7-5/8 x 4 x 1-3/4 *Estimated*Unit Weight: 10 OunceShipping Weight: 1.10 LbsQuantity: 1

  • Range: 0 - 1''; Pitch: 64 - 5 TPI / 0.4 - 5.0mm; Graduations: .001''; Accuracy: .00016''/0.004mm; 5 Pairs Of Anvil # 1-5: Anvil Pair #1: 64-48 TPI (Thread Per Inch) , 0.4 - 0.5mm (Metric); Anvil Pair #2: 44-28 TPI, 0.6 - 0.9mm; Anvil Pair #3: 24-14 TP
  • 0-1" Range Screw Thread Micrometer Kit With 5 Pairs Of Anvil 60 Degree; Interchangeable 60 Degree V-anvil And Conical Spindle Are Made Of A High Grade Steel, Precision Ground And Hardened; Use To Measure Pitch Diameter Of Metric And 60 Degree Unified Scr
  • Advanced Spindle Design In Hardened And Precision Ground Lead Screw Threads Give Reliable And Accurate Reading Rotating The Thimble Sleeve When The Inspection Piece Is Between The Spindle And Anvil Activate The Ratchet Mechanism To Tap The Spindle An
  • Case Dim L x W x H (in): 7-5/8 x 4 x 1-3/4 *Estimated*
  • Quantity: 1; Unit Weight: 10 Ounce; Shipping Weight: 1.10 Lbs
Item Weight 5 pounds
